Sachiya Steel International offers a broad spectrum of Hastelloy C22 Threaded Forged Fittings to the esteemed clients, which are designed and engineered utilizing advanced technology and high quality metals. Hastelloy C22 Forged Threaded Elbow Fittings (UNS N06022) has shown an outstanding resistance to a wide range of chemicals, including chlorides, organic and inorganic solutions. Hastelloy C22 Forged Threaded Tee Fittings also has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chlorine ions.

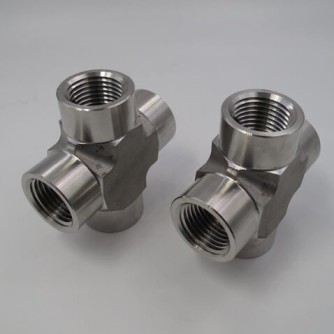

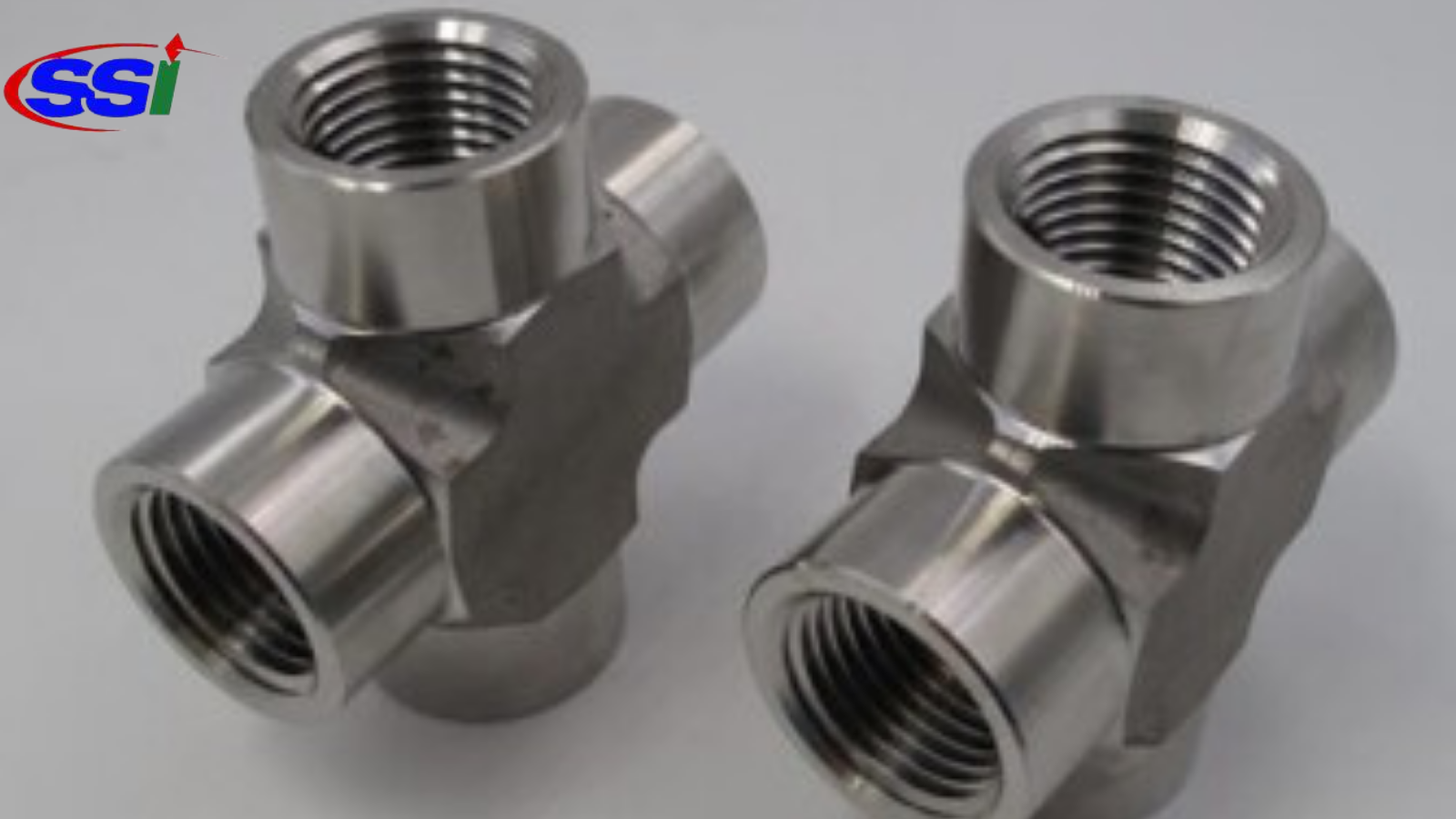

Hastelloy C22 Forged Threaded Cross Fittings has better overall corrosion resistance than Hastelloy C-4 & C-276 and Inconel 625. Meanwhile, these Hastelloy C22 Forged Threaded Cap Fittings are as well being offered in customized sizes and shapes to our customers. We also offer Hastelloy C22 Forged Threaded Bend Fittings at market leading rates. Annealing of Hastelloy C22 Forged Threaded Coupling Fittings can be performed at a temperature range between the ranges of 2020 Degree F – 2150 Degree F followed by a rapid quench.
Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings | Hastelloy C22 Threaded Forged Fittings
Cooling of Hastelloy C22 Forged Threaded Union Fittings at an accelerated rate avoids the formation of detrimental phases which form between the ranges of 1400 Degree F – 1800 Degree F. Hastelloy C22 Forged Threaded Bushing Fittings also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. Hastelloy C22 Forged Threaded Plug Fittings is beneficial in multi – purpose plants where such “upset” conditions occur frequently.
Hastelloy C22 Threaded Fittings Specifications |
||
Specifications | : | ASTM B564 & ASME B564 |
Size | : | 1/8” NB to 4” NB (Socket weld & Screwed-Threaded) |
Standards |
: | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
Type | : | Threaded Fittings |
Hastelloy C22 Forged Threaded Fittings Chemical Composition
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
Hastelloy C22 Threaded Fitting Mechanical Properties
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Equivalent Grades for C22 Hastelloy Forged Threaded Fittings
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
Hastelloy C22 Forged Threaded Fittings Application Industries
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
