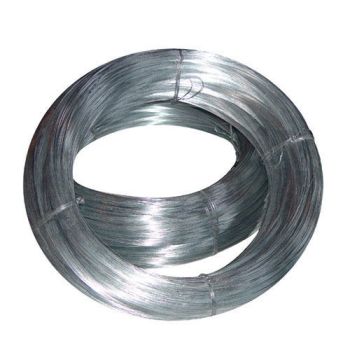

Sachiya Steel International offers a wide quality range of Incoloy 800 Wire which belongs to the category of super austenitic stainless steels where the general corrosion resistance is excellent. This Incoloy 800 Wire exhibits an austenite structure similar to austenitic stainless steels, and appropriate heat treatment procedures and requirements are similar. Our Incoloy 800H Wire is often used in Nitric acid catalyst supports, Reformer outlet pigtails and manifolds. Applications of this Incoloy 800HT Electrode include furnace components and equipment, pigtails and headers, sheathing for electrical heating elements and petrochemical furnace cracker tubes.
In the solution annealed condition, our Incoloy 800 Coil Wire has superior creep and stress rupture properties. The chemical balance allows this Incoloy 800H Wire to exhibit excellent resistance to oxidation, carburization and nitriding atmospheres. Incoloy 800HT Welding Filler is best joined / welded using products for high temperature situations and resistance to aqueous corrosion at moderate temperatures. Our Incoloy 800 Filler Wire is extremely functional as it maintains a stable structure, even when exposed to high temperature.
In addition to the chemistry restrictions, this Incoloy 800H Coil Wire receives a high temperature annealing treatment that produces an average grain size or coarser. Our Incoloy 800HT Welding Electrode is an iron – nickel – chromium alloy having sufficient resistance to carburization and oxidation at high temperatures as well as moderate strength.
Incoloy 800/800H/800HT Wire Specifications
|
||
Specifications | : | AMS 5766 |
Dimensions | : | ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360 |
Length | : | 100 mm TO 6000 mm |
Diameter | : | 10 mm To 100 mm |
Specialize | : | Filler Wire, Coil Wire |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
- Pharmaceuticals
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
