What is an Oscilloscope?
An oscilloscope, also known as a scope or O-scope, is a type of electronic test instrument that allows observation of changing voltage signals over time. It converts electrical signals into visual images that represent the signal as a two-dimensional graph. An oscilloscope displays the variation of an electrical signal with respect to time, allowing the user to measure a signal's amplitude, frequency and duration. The signal being measured is usually represented on the screen as a two-dimensional graph.
Components of an Oscilloscope

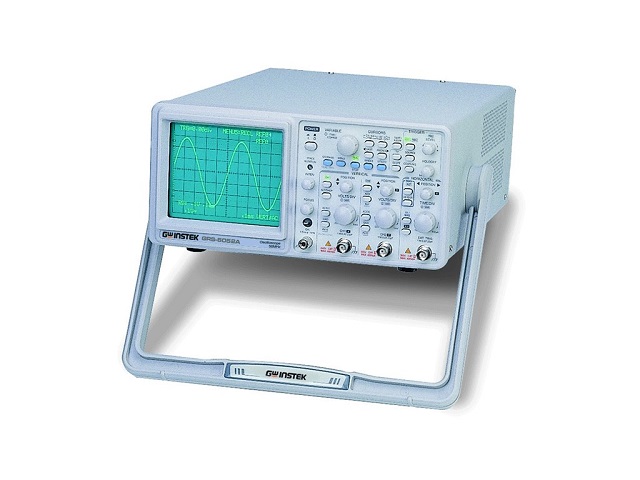

A basic Oscilloscope consists of three main components - the vertical amplifier, the horizontal sweep generator and the cathode ray tube(CRT) display. The vertical amplifier measures the voltage of the signal being tested and displays it along the vertical or Y-axis of the CRT. The horizontal sweep generator triggers and controls the movement horizontally i.e. along the X-axis of the beam across the CRT tube. The CRT screen displays the visual representation of the signal being measured. More advanced oscilloscopes may use LCD displays instead of CRTs. Additional components like trigger controls and delay lines are also present to properly synchronize the trace on the screen.
Types of Oscilloscope Probes
Oscilloscope probes are critical for attaching the oscilloscope to the circuit being tested and ensuring safe isolation. Different probe types include:
- Passive probes - Simple resistor divider probes that reduce the voltage by a set factor, usually 10:1 or 100:1. They are inexpensive but have limited bandwidth.
- Active probes - Contain integrated circuit amplification inside the probe tip to provide higher bandwidth while maintaining the voltage attenuation. More expensive than passive probes.
- High voltage probes - Used for measurement of large signals over hundreds or thousands of volts. Safety grounding is essential while using these.
- Current probes - Transform circuit currents into voltages that can be measured by the oscilloscope. Useful for sensing currents not easily accessible with voltage probes.
Applications of Oscilloscopes Some common applications of oscilloscopes across different industries include:
Electronics - Troubleshooting analog and digital circuits, measuring signal integrity of high speed buses, testing power supplies.
Automotive - Ignition waveform analysis, sensor signal measurement, emissions testing.
Communications - Analysing radio signals, modulating/demodulating waveforms, network traffic inspection.
Aerospace - Aircraft system maintenance, satellite/rocket electronics testing, avionics development.
Industrial - Motor/machine vibration analysis, power quality monitoring, process control validation.
Biomedical - ECG/EEG signal recording, defibrillator performance testing, electrosurgery device safety.
Education - Demonstrating circuit fundamentals, signal properties, test and measurement skills.
Security - Password protected system breach attempts, network intrusion detection, RF eavesdropping.
Oscilloscope Measurements
Some common quantitative measurements that can be performed using an oscilloscope include:
- Voltage - Measuring amplitude of signal under test at any given time.
- Frequency - Counting the number of cycles occurring in a specific time duration.
- Time period - Measuring the time for one full cycle of a repetitive signal.
- Rise/fall time - Time taken for the signal amplitude to change between preset voltage levels.
- Peak-to-peak voltage - Difference between the maximum positive and negative voltage excursions.
- RMS voltage - Root mean square voltage value, applicable for AC signals.
- Bandwidth - highest frequency at which signal details are still discernible on the displayed trace.
- Triggering - Setting the trigger point manually or automatically to capture the required part of the waveform repeatably.
Modern Oscilloscope Features

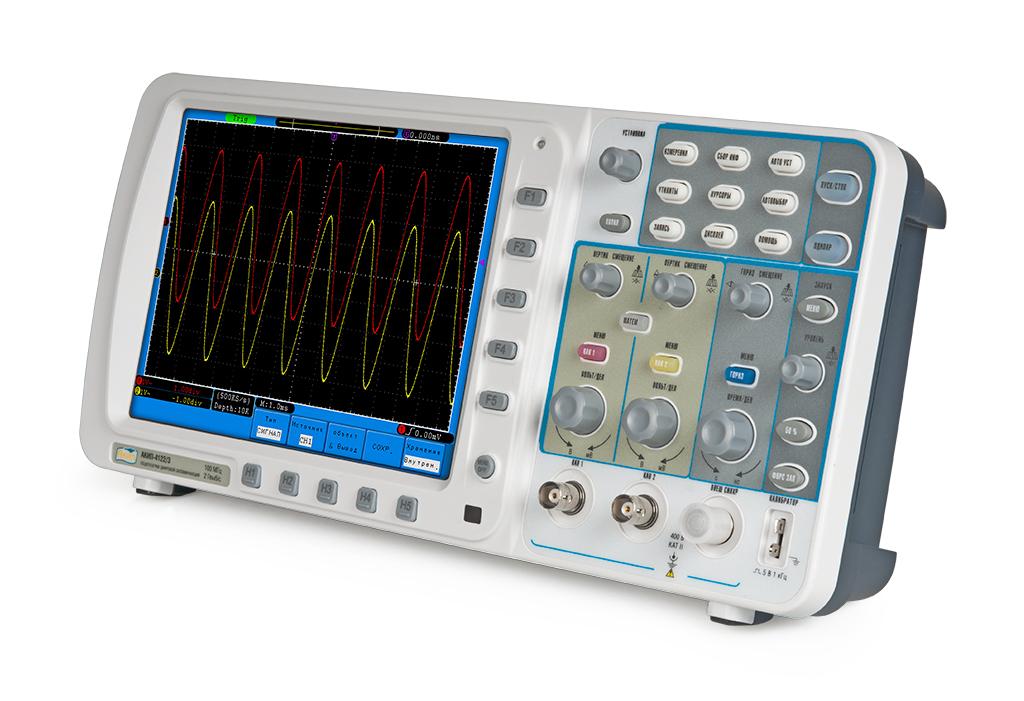

Advanced digital oscilloscopes nowadays incorporate many additional capabilities:
- Storage oscilloscopes allow temporary storage of waveforms for analysis in 'stop' or 'single' modes.
- Digital signal processing features enable filtering, math functions, decoding differential signals.
- Serial bus triggering/decode of protocols like I2C, SPI, UART, CAN, LIN aids automotive/embedded systems analysis.
- Segmented memory mode stores several pulses over time in separate segments for time/statistical analysis.
- FFT mode converts time-domain signals to frequency domain for spectral analysis using Fast Fourier Transforms.
- Extended sampling rate and bandwidth specifications of over 1GHz helps examine faster real world signals.
- PC connectivity using USB/LAN ports allows remote control, data storage and post-processing on a computer.
- Multichannel scopes with 4,8 or more input channels are available for simultaneous observation of many signals.
Oscilloscope is an indispensable piece of electronic test equipment today due to its versatility in examining analog and digital electronic signals. Its numerous measurement capabilities and advanced triggering/storage features have made it a fundamental diagnostic tool across many industries. With continuing innovation, scopes are providing ever deeper insights into signal behavior.
