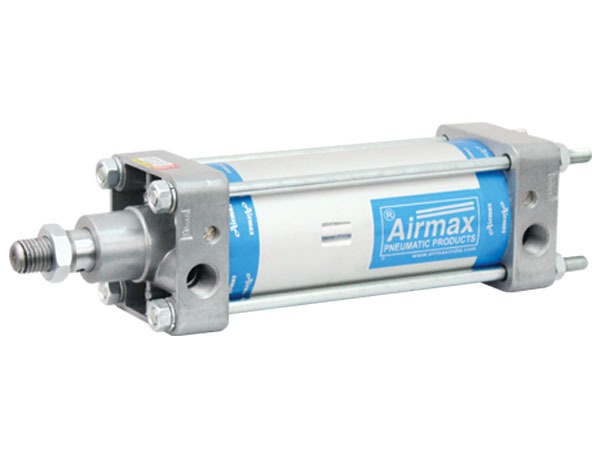

Pneumatic cylinders play a crucial role in automation, manufacturing, and industrial applications by converting compressed air into mechanical motion. When selecting a pneumatic cylinder, one of the key decisions is choosing between a single-acting cylinder and a double-acting cylinder. Both types have distinct advantages depending on the application. This guide will help you understand the differences, benefits, and best use cases for each type to make an informed decision.
What is a Single-Acting Cylinder?
A single-acting cylinder operates using compressed air to generate force in one direction while relying on a spring or external force to return the piston to its original position.
Key Features:
Relies on a spring or external force for the return stroke. Consumes less air compared to double-acting cylinders. Generally more compact and cost-effective.
Advantages:
Lower air consumption, reducing energy costs.
Simple design, leading to lower maintenance requirements.
Ideal for applications with limited space and simple linear motion needs.
Common Applications:
Clamping and holding mechanisms.
Punching and stamping operations.
Lifting and lowering in controlled environments.
What is a Double-Acting Cylinder?
A double-acting cylinder utilizes compressed air for both the forward and return strokes, allowing controlled movement in both directions.
Key Features:
Uses air pressure to extend and retract the piston.
Provides greater control over speed and positioning.
More efficient for repetitive, high-force applications.
How to Choose the Right Cylinder for Your Application
When deciding between a single-acting and double-acting cylinder, consider the following factors:
Application Requirements – If your application requires movement in one direction with minimal energy use, a single-acting cylinder is ideal. For bi-directional force and precision control, choose a double-acting cylinder.
Budget Considerations – If cost is a concern, single-acting cylinders are more economical, while double-acting cylinders provide long-term value through efficiency and durability.
Conclusion:
Both single-acting and double-acting cylinders serve essential roles in industrial automation and pneumatic applications. If you need a cost-effective, low-maintenance solution for simple operations, a single-acting cylinder is the right choice. However, for greater precision, speed control, and efficiency in both directions, a double-acting cylinder is the preferred option. By evaluating your specific application needs, space availability, and operational efficiency, you can select the right pneumatic cylinder for optimal performance in your system. Need expert advice on choosing the best pneumatic cylinder for your project? Contact us today!
