Understanding butterfly valves
A butterfly valve is a type of valve that is used to control the flow of fluids within a piping system. It consists of a metal disc, known as the "butterfly", that is positioned in the center of the valve and is connected to a shaft. The disc can be rotated to either allow or restrict the flow of fluid through the valve.
Butterfly valves are known for their simple and compact design, which makes them easy to install and maintain. They are commonly used in a wide range of industries, including oil and gas, chemical, water treatment, and HVAC.
One of the key advantages of butterfly valves is their quick and efficient operation. The disc can be opened or closed with a quarter-turn motion, allowing for faster flow control compared to other types of valves. This can be particularly beneficial in applications where quick response times are required.
Role of chain pulleys

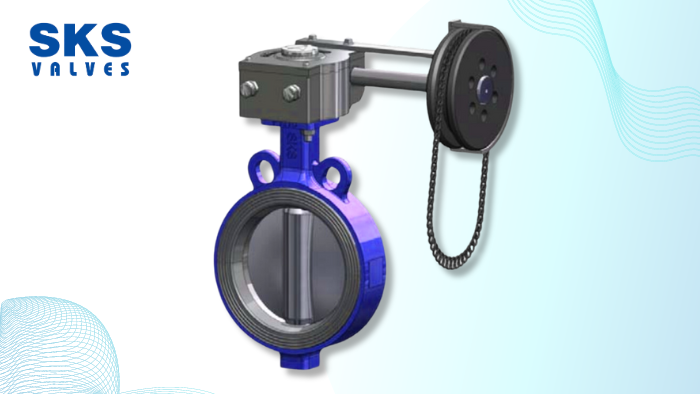

In the case of a chain pulley butterfly valve, a chain and pulley mechanism is employed for operation. This means that instead of directly turning a handle or lever, a chain and pulley system is used to control the movement of the valve's disc.
The chain and pulley mechanism works by attaching one end of the chain to the valve's shaft and running the chain through a series of pulleys. By pulling or releasing the chain, the valve can be opened or closed as desired. This type of operation is often found in industrial applications where manual operation may be impractical or unsafe.
The use of chain pulleys in butterfly valves offers several advantages. Firstly, it allows for remote operation of the valve. This means that the valve can be controlled from a distance, which can be useful in situations where the valve is located in a hard-to-reach or hazardous area.
Secondly, the chain and pulley mechanism provides a mechanical advantage, making it easier to operate larger valves. The use of a chain and pulley system helps to distribute the force required to open or close the valve, reducing the amount of physical effort needed.
Lastly, chain pulleys can also be used to provide additional control options. For example, the length of the chain can be adjusted to control the degree of valve opening, allowing for more precise flow control.
Advantages of butterfly valves
Butterfly valves, including chain pulley butterfly valves, offer several advantages that make them a popular choice in many industries.
Firstly, butterfly valves have a lower pressure drop compared to other types of valves. This means that they allow for a more efficient flow of fluid through the system, reducing energy consumption and operating costs.
Secondly, butterfly valves are cost-effective. They have a simple design, requiring fewer components than other types of valves. This makes them easier and cheaper to manufacture, install, and maintain.
Thirdly, butterfly valves are compact and lightweight. Their compact design allows for easy installation in tight spaces, while their lightweight construction reduces stress on piping systems. This can be particularly beneficial in applications where space and weight are critical factors.
Lastly, butterfly valves are versatile. They can be used in both high and low-pressure systems, as well as in applications involving a wide range of fluids, including gases, liquids, and slurries. This versatility makes butterfly valves suitable for a wide range of industries and applications.
In conclusion, a chain pulley butterfly valve is a type of butterfly valve that is operated using a chain and pulley mechanism. It offers several advantages, including remote operation, mechanical advantage, and additional control options. Butterfly valves, including chain pulley butterfly valves, are widely used in various industries due to their quick and efficient operation, cost-effectiveness, compact design, and versatility.
